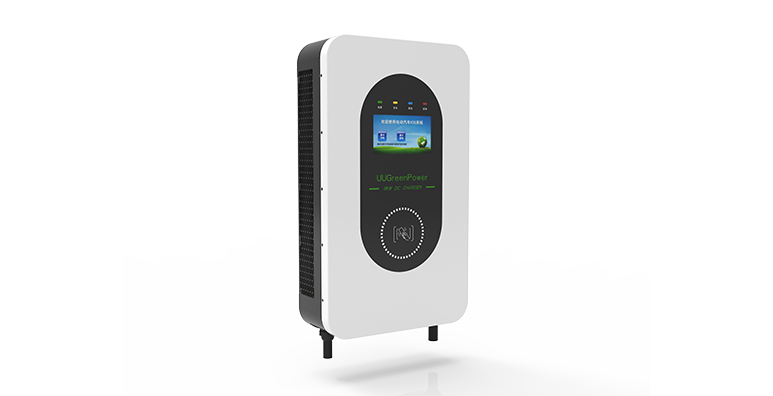

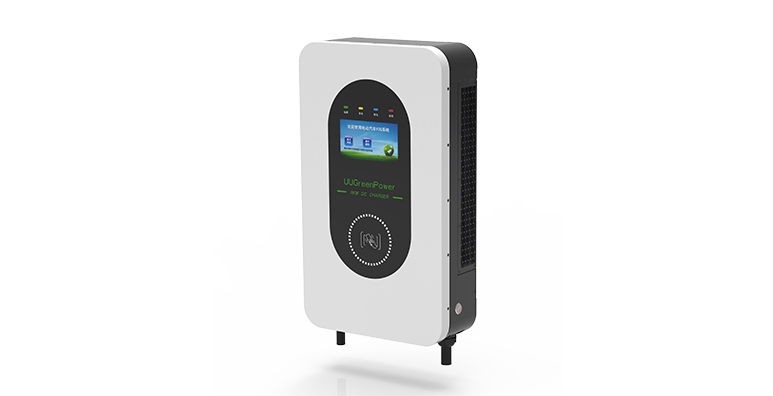

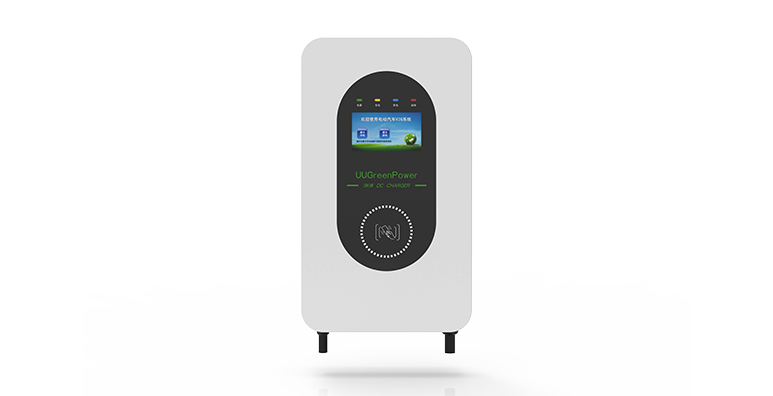

UBC100011-T V2G charger, supports bi-directional flow of electric energy, independent airduct, IP65 protection level, with super wide output voltage range from 150V to 1000V, supports most of passenger EV. It is widely used for charging and discharging between power grid and passenger EV.
| DC side energy | Bi-directional |
| Rated output power | 11kW |
| Constant power voltage range | 300~1000V |
| DC Voltage range | 150~1000V |
| DC Current range | -36.7~38.6A |
| Over voltage protection | Support |
| Under voltage alarm | Support |
| Short-circuit protection | Support |
| Voltage accuracy | ≤±0.5% |
| Current accuracy | ≤±1% |
| Start output overshoot | ≤5% |
| Voltage ripple | ≤1% (peak -to-peak) |
| Current ripple | ≤1A (peak-to-peak) |
| Efficiency | ≥95% |
| AC side energy | Bi-directional |
| Rated output power | 11kW |
| Rated AC voltage | Three-phase 400VAC (265V~485V) |
| Frequency | 55±10Hz |
| Rated AC current | 16.7A |
| THDi | ≤5% |
| PF | ≥0.99@Rated power |
| Maximum current | 21A |
| Leakage current | 3.5mA |
| Under voltage protection | Support |
| Overvoltage protection | Support |
| Power limitation | Support |
| Display | LCD |
| Communication interface | 4G/RJ45/RS485/Bluetooth |
| Alarm | LED |
| Working temperature | -40℃~70℃ |
| Storage temperature | - 40°C~75°C |
| Humidity | ≤95%, without condensation |
| Altitude | 2000m |
| Noise | ＜55dB |
| Cooling mode | Independent airduct cooling |
| IP level | IP65 |
| Dimension | 655mm(W)*380mm(H)*145mm(D) |
| Net weight of the wholepile | ≤32kg |

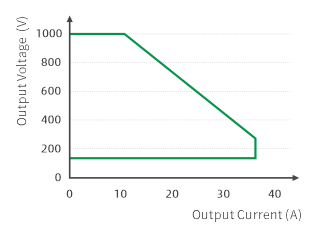

Charge Output Characteristic Curve

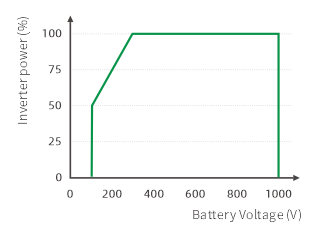

Inverter Output Characteristic Curve

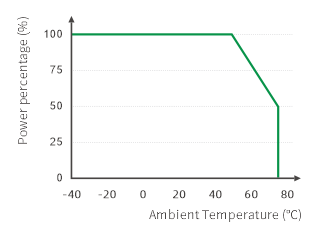

Temperature Characteristic Curve
Application
