UR100030-DD power module is dedicated to EV charging application. The module deploys the world's leading power electronic control technology and design technique, has good performance of high power density, high efficiency, wide voltage range, and wide operating temperature range. With built-in battery current backflow protection circuit and built-in output residual voltage relief circuit, the system is highly reliable and easy to design.
| Work mode | High voltage |
| Regulated output voltage adjustment range | 200~1000VDC |
| Rated ouput voltage | 1000V |
| Rated output current | 30A |
| Current adjustment range | 0.5A ≤ I ≤ 60A |
| Startup time factor (25℃) | ≤ 1% (peak-to-peak) (500VDC~1000VDC) |
| Startup time | < 1s |
| Current stabilized accuracy | ≤ ±1% |
| Voltage stabilized accuracy | ≤ ±0.5% |
| Current unbalance | ≤ 5% (above 10% of rated load) |
| Efficiency | ≥ 95% (full load rated power) |
| Work mode | Low voltage |
| Regulated output voltage adjustment range | 150~500VDC |
| Rated ouput voltage | 500V |
| Rated output current | 60A |
| Current adjustment range | 0.5A ≤ I ≤ 100A |
| Startup time factor (25℃) | ≤ 1% (peak-to-peak) (200VDC~500VDC) |
| Startup time | < 1s |
| Current stabilized accuracy | ≤ ±1% |
| Voltage stabilized accuracy | ≤ ±0.5% |
| Current unbalance | ≤ 5% (above 10% of rated load) |
| Efficiency | ≥ 95% (full load rated power) |
| Input voltage | 230VDC~825VDC |
| Acoustic noise | < 65dB (with a distance of 1m) |
| Cooling | Fan cooling |
| Dimension | 300mm (W) * 84mm (H) * 437.5mm (D) |
| Weight | 13.8kg |
| Overtemperature protection | -40℃~70℃; -40℃ (±4℃) module boots; derates from 55℃; shut down from 70℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | ≤95% RH, without condensation |
| Atmospheric pressure | 79kPa~105kPa |

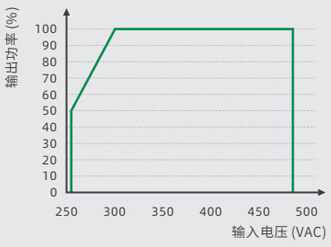

Input Characteristic Curve

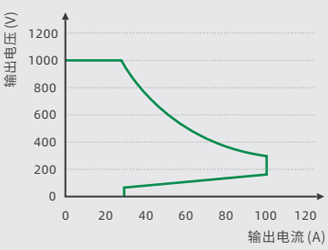

Output Characteristic Curve

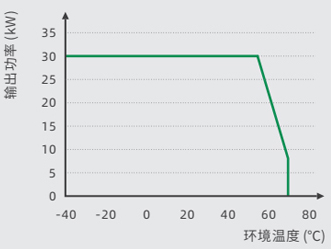

Temperature Characteristic Curve
