UR100030SW-AD high power 30kW charging module is dedicated to application in the fast charging station especially for energy storage charging station of EV. With the world's leading power electronic control technology and design technique, the module has good performance of high power density, high efficiency, wide voltage range, wide operating temperature range which make the charging system high reliability and easy to design.
| Rated output | 1000V/30A |
| Constant power voltage range | 300~1000V (30kW) |
| Output voltage range | 150V~1000V |
| Output current range | 0.5~100A |
| Short circuit protection | Current limiting mode triggered when short-circuiting, and recovering automatically |
| Voltage stabilized accuracy | ≤±0.5% |
| Current-sharing accuracy | ≤±3% |
| Max. startup overshoot | ≤±1% |
| Current stabilized accuracy | ≤±1% |
| Startup time | 3s≤t≤8s |
| Efficiency | ≥94.5% |
| Input voltage | 260~485VAC |
| Input frequency | 55±10Hz |
| THD | ≤5% |
| Power factor | Pf≥ 0.99@ Rated load |
| Max. input current | <40A |
| Input under voltage protection | 255±5V |
| Input over voltage protection | 490±5V |
| Input Power Derating | When voltage increases from 260±5V to 304±5V, linear power increases from 50% to 100%; when voltage decreases from 323±5V to 260±5V, linear power derates from 100% to 50%. |
| DC input voltage range | 260~820V |
| DC input power derating | 700~820V rated output 20kW 260~720V linear power down to 5kW |
| Communication | CAN |
| Max. Number of parallel machines | 60pcs |
| Alarm and status | Display with digital tubes and LED |
| Operating temperature | -40℃~70℃ AC input： derates from 55℃ DC input： derates from 45℃ |
| Over temperature protection | >70℃±4℃ or <-40℃±4℃, module shut down automatically |
| Storage temperature | -40°C~85°C |
| Humidity | ≤95% RH, without condensation |
| Atmospheric pressure/Altitude | 79kPa~106kPa/2000m |
| Acoustic Noise | ＜65dB |
| Cooling | Forced air cooling, forward air, rear air |
| Dimension | 300mm (W) *84mm (H) *437.5mm (D) |
| Weight | <15kg |

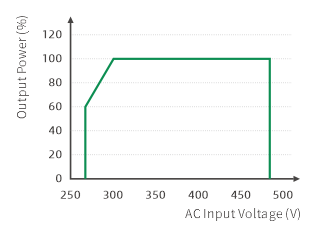

AC Input Curve

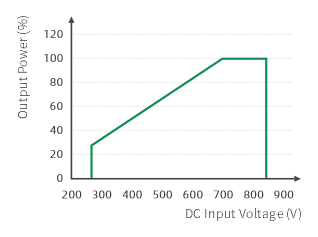

DC Input Curve

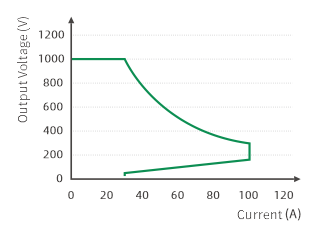

Output Characteristic Curve
